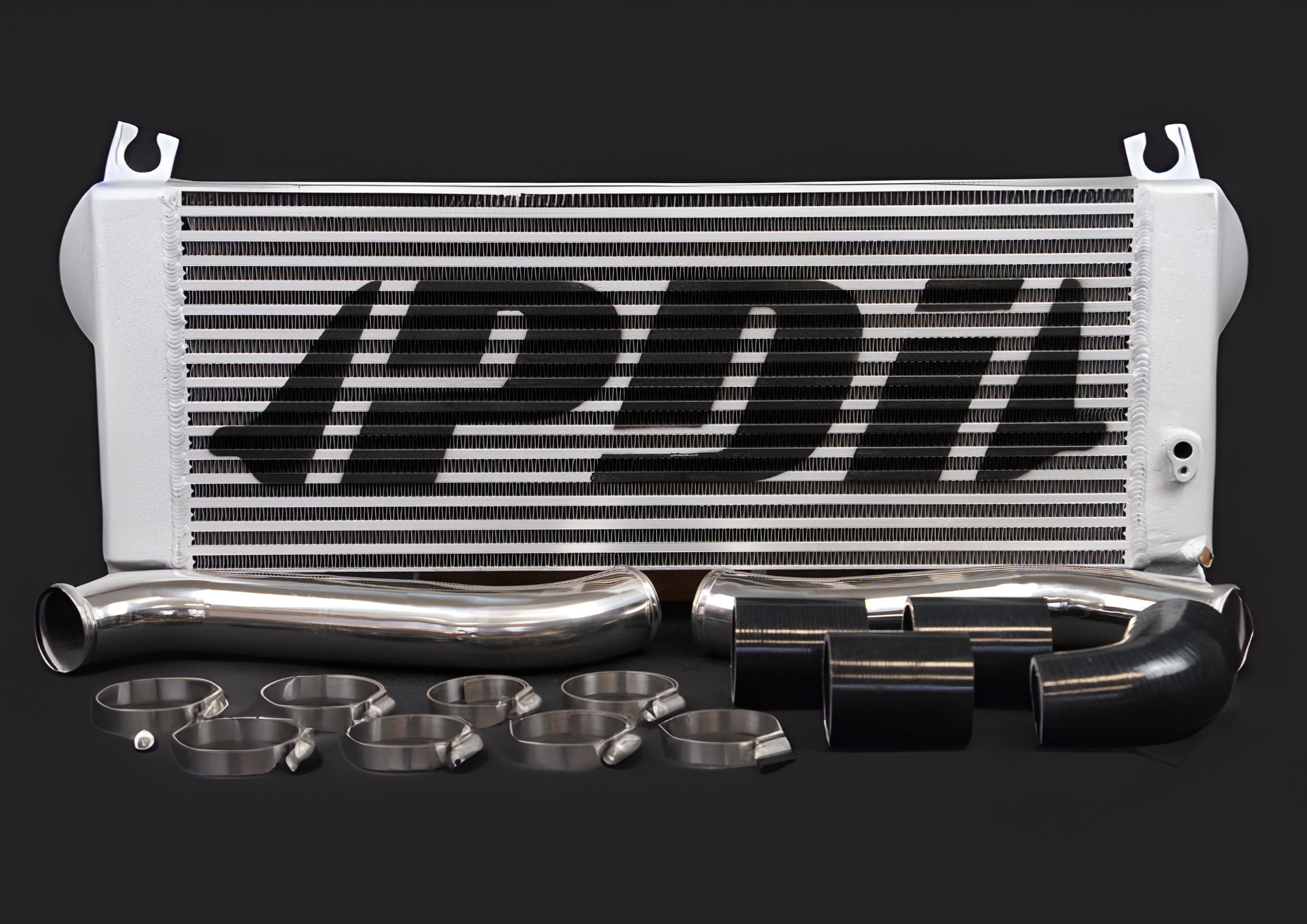

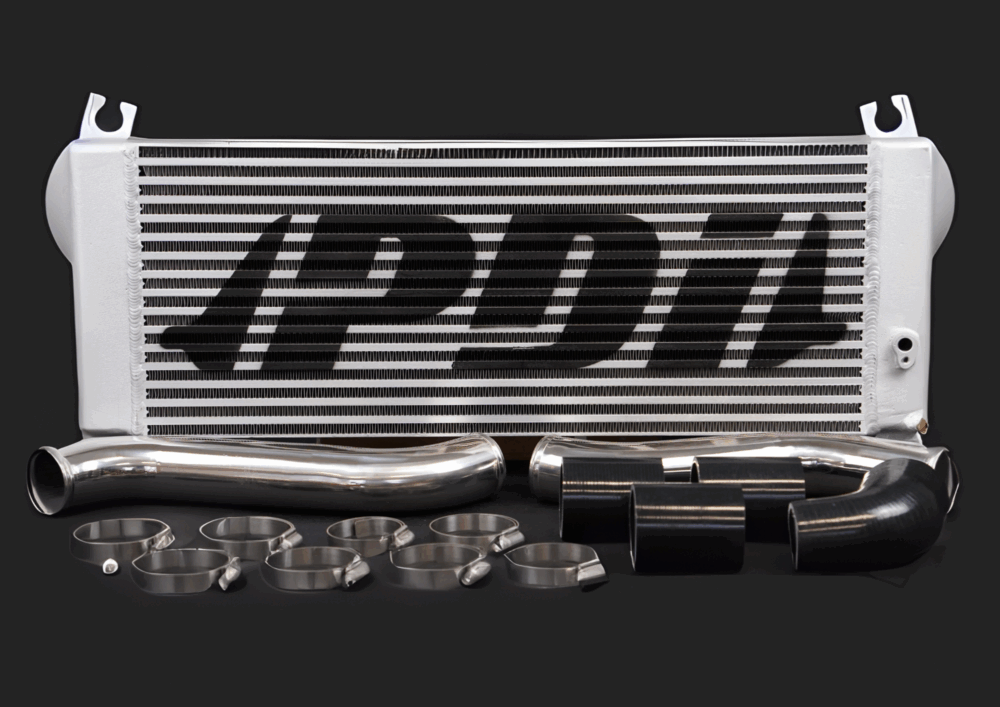

PDI Upgraded Front Mount Intercooler Kit suit Ford Ranger 2011+ / Everest 3.2L

Price range: $1,700.00 through $2,450.00 incl. GST

Unlock the full potential of your Ford Ranger and Everest with the PDI Front Mount Intercooler Kit engineered for maximum airflow, lower exhaust gas temperatures (EGTs) and serious gains in turbo diesel performance.
Designed for 4WD enthusiasts, touring setups and high performance builds, this kit delivers superior cooling efficiency compared to traditional top mount intercoolers especially under load, towing and off road conditions.

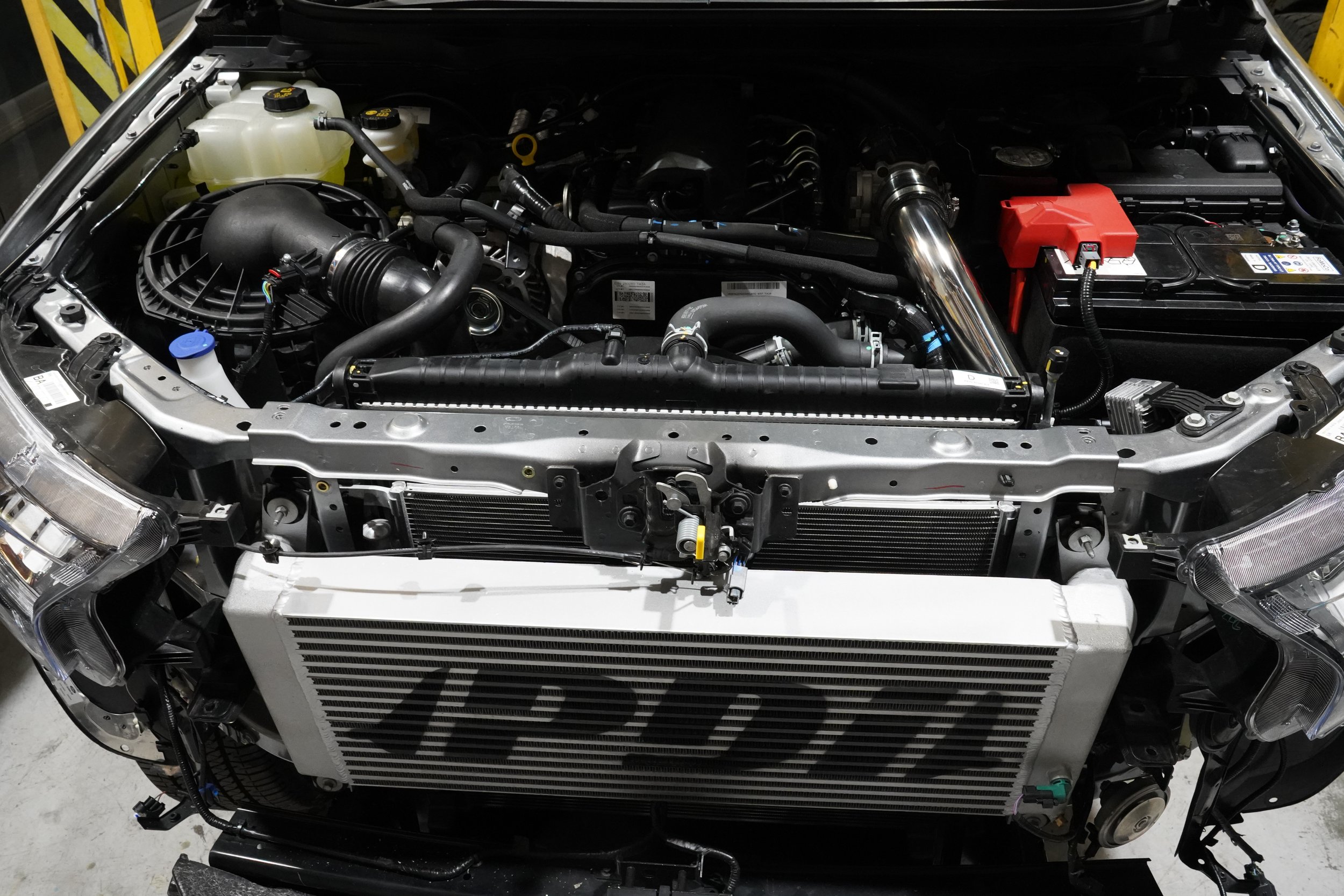

The PDI front mount design provides direct airflow through the grille, ensuring the intercooler receives the coldest possible air. This results in significantly lower intake temperatures, improved combustion efficiency and more usable power.
With large 2.5” stainless steel intercooler piping and a high efficiency bar and plate core, this is a true high performance intercooler upgrade for Ford Ranger and Everest turbo diesel engines.

Testing shows the PDI front mount dramatically outperforms both factory and aftermarket  intercoolers:

  • Significantly lower intake air temperatures (IATs)
  • Up to 100°C reduction in EGTs under load
  • Improved air fuel ratios, fuel economy and engine response
  • Supports high horsepower builds
Whether you’re towing, touring or pushing your build hard, this is one of the most effective intercooler upgrades for turbo diesel Ford Ranger and Everest vehicles available.

Built for Real 4WD Conditions

  • Bar and plate intercooler core for maximum durability
  • 2.5” stainless steel pipework for strength and airflow
  • No piping through wheel arches reduced risk of damage off road
  • Retains compatibility with factory dual battery setups

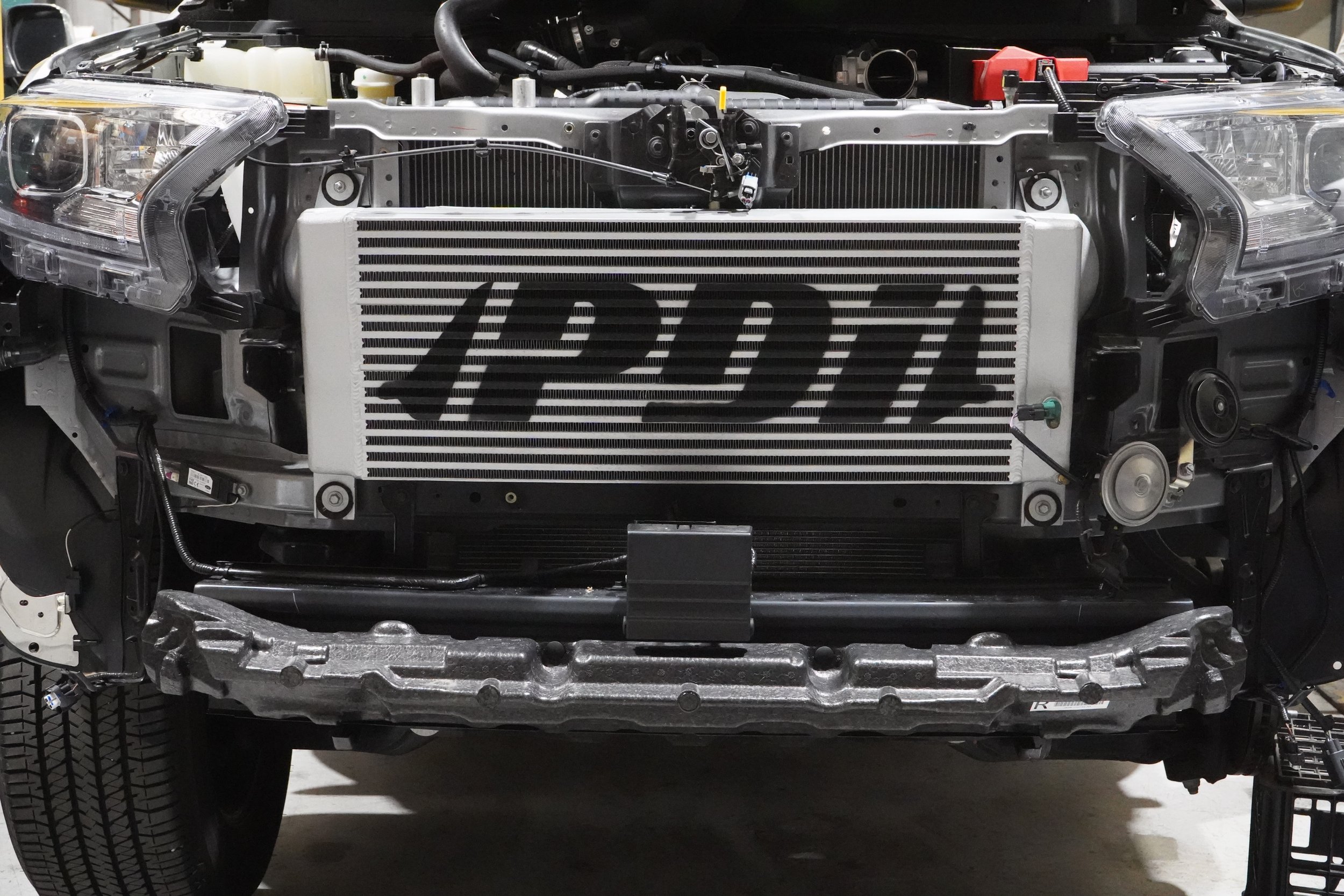

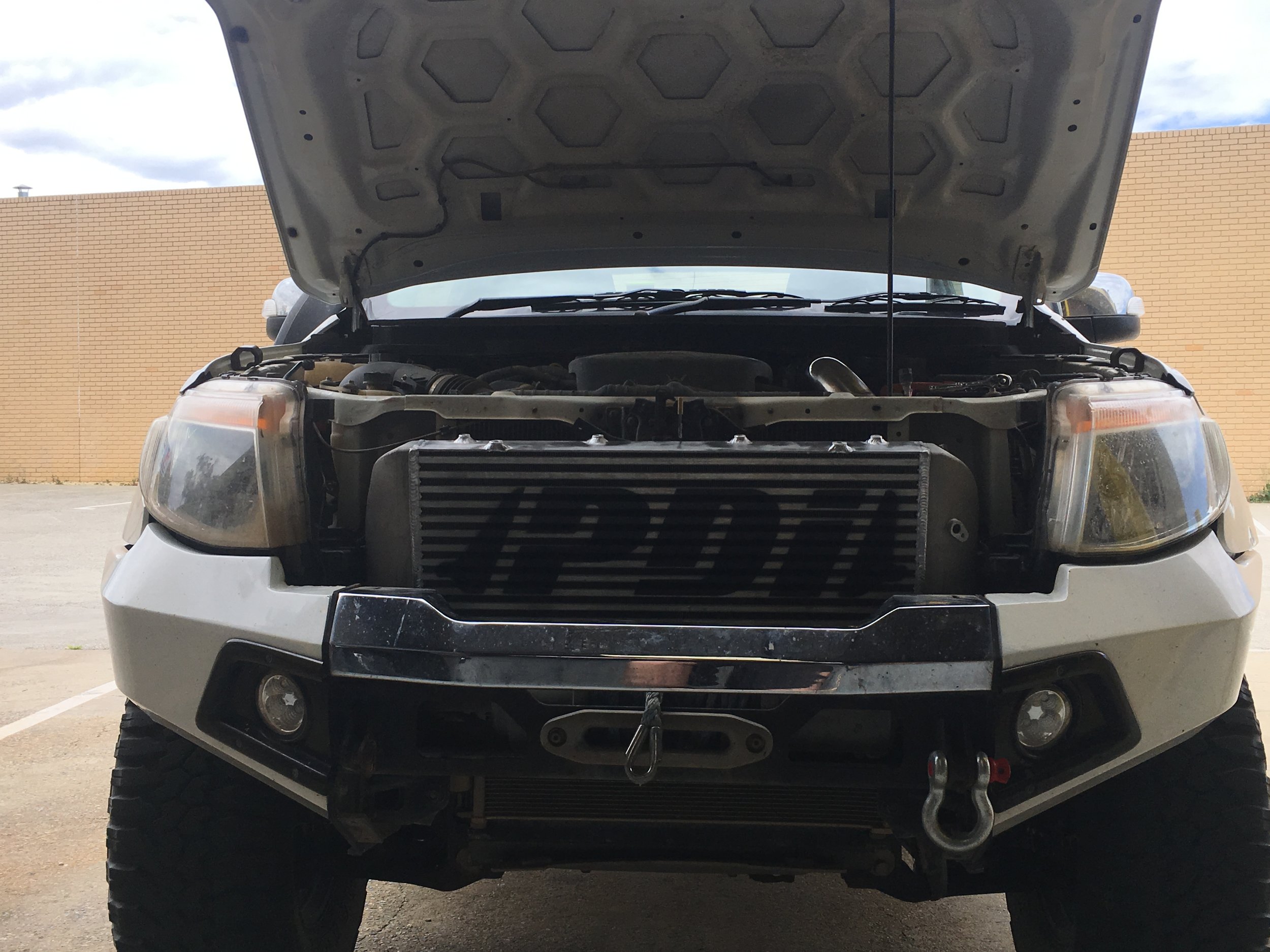

  • Mounted behind the grille for faster cooling and reduced heat soak
It’s no coincidence that OEM manufacturers place radiators at the front, airflow matters.
SKU N/A Categories , Tags , Brand: ,

Additional Information

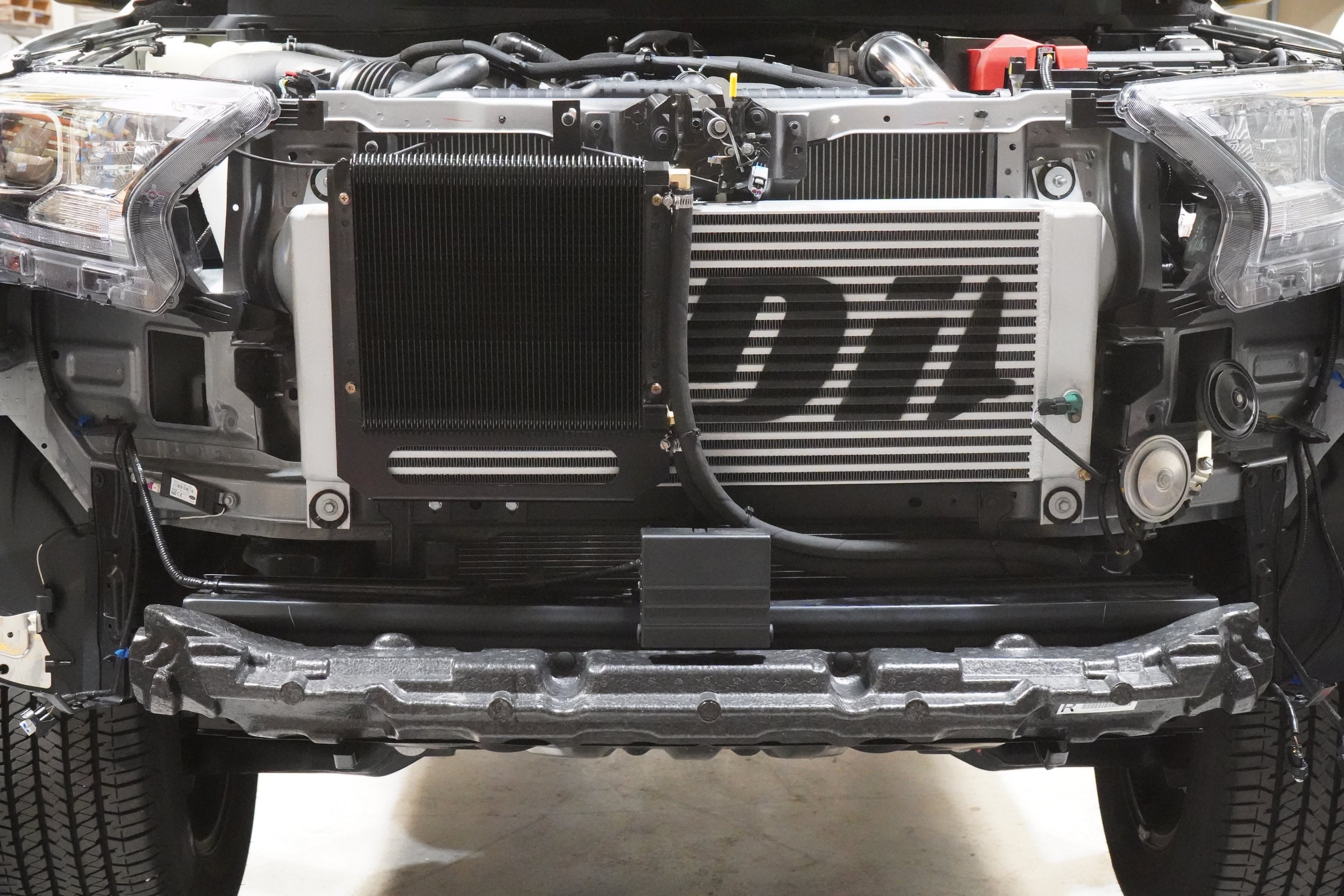

The latest update to the PDI intercoolers for the Ford Ranger makes easier fit with the updated PX3 facelift model through to the last of 3.2L (2022) model. The facelift model also saw a change to the radiator support panel, which allows us to fit the core further back without dropping the height and allow the addition of the transmission cooler kit

For information on our transmission cooler kit CLICK HERE.

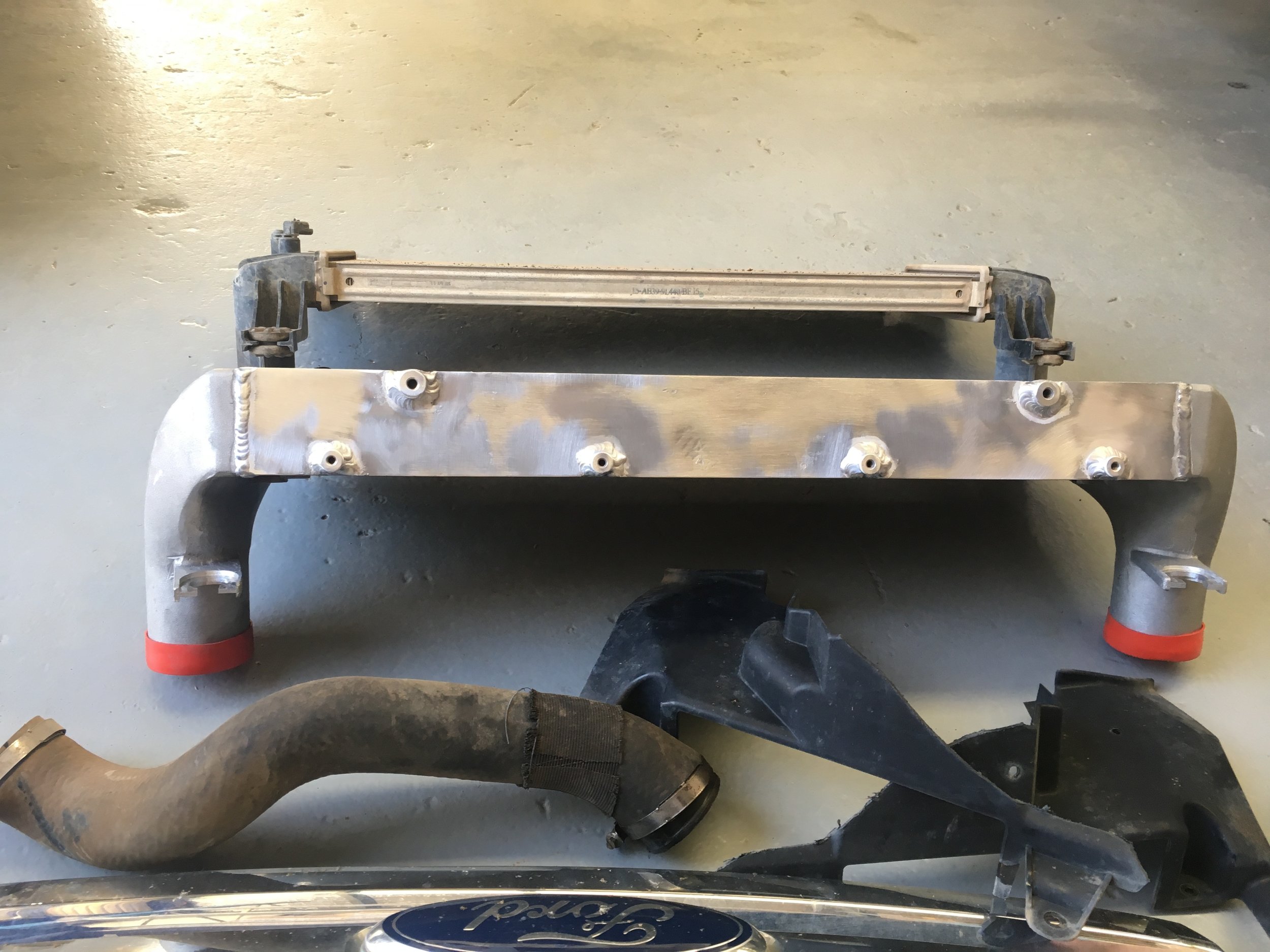

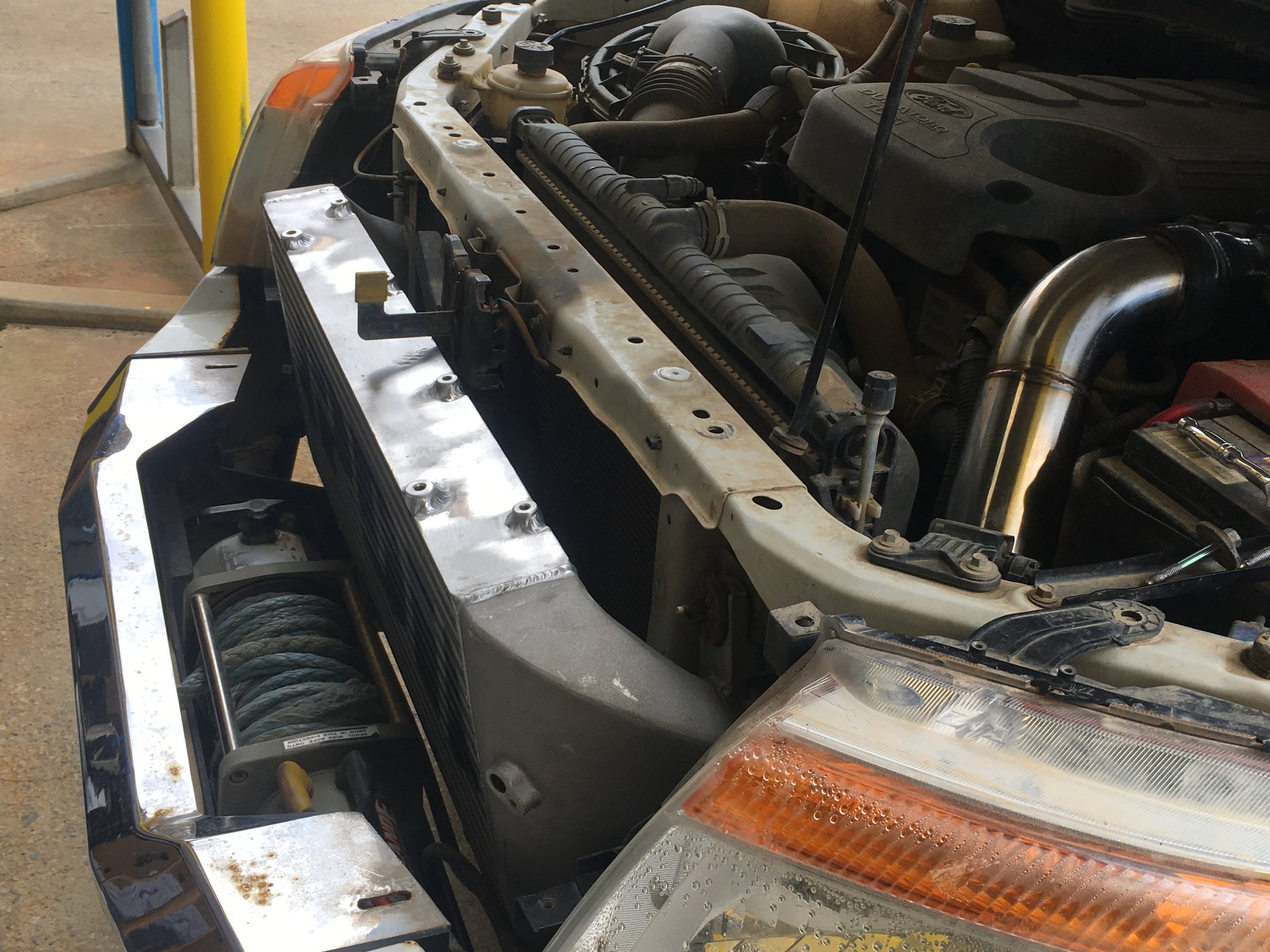

The first of the PDI Ford Ranger Front Mount Intercooler designs core is 700x300x76mm and has bigger and high flow cast alloy end tanks. These are still available.

If you want to increase the turbo intake size check out our product HERE

If you have a PX1 Ranger with auto transmission, we think it should be possible to fit our updated intercooler and transmission cooler.

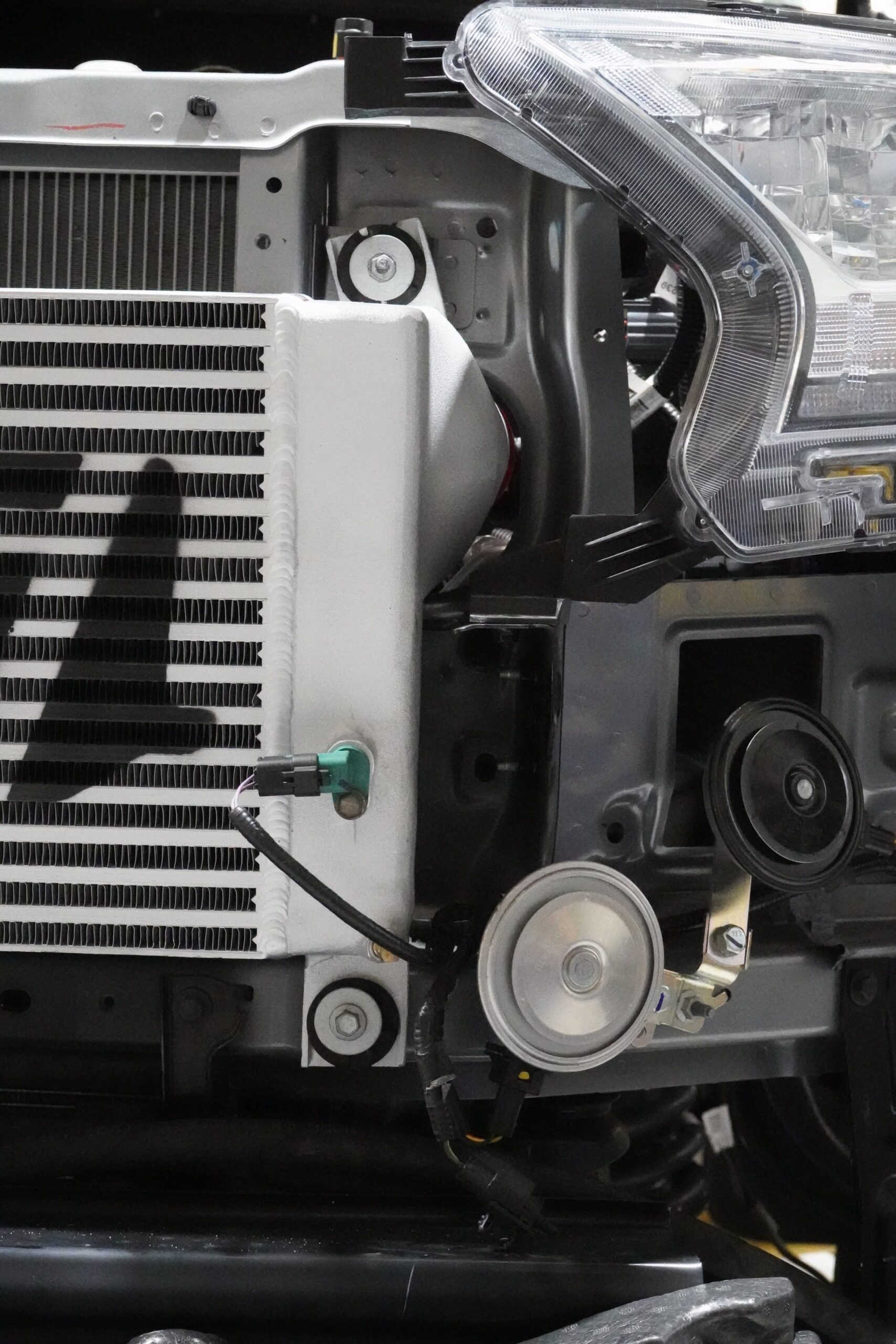

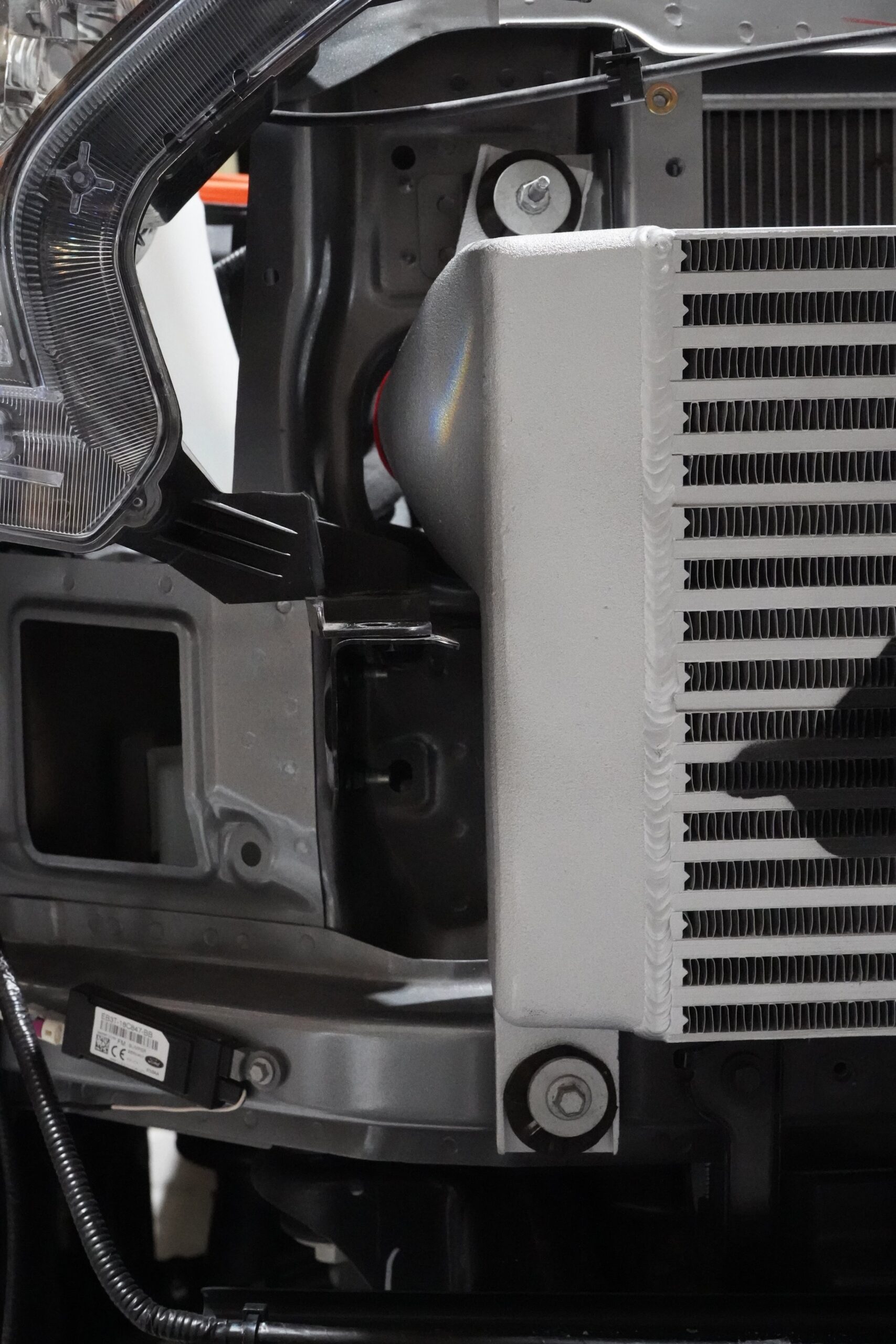

The centre (vertical) support is part of the radiator support panel and can not be purchased individually and welded into the original panel. The facelift used a new bonnet latch (attached with 2 bolts) and the centre support design sits slightly further back. After removing the lower bolt we found that the latch was still rock solid so to replicate the design of the PX2 we would cut the lower mount from both the latch and the centre support. The updated intercooler will then be able to sit under the latch and if the intercooler still hits we would consider adding thicker spacers behind the upper intercooler mount or adjusting the centre support in the area just under the latch.
