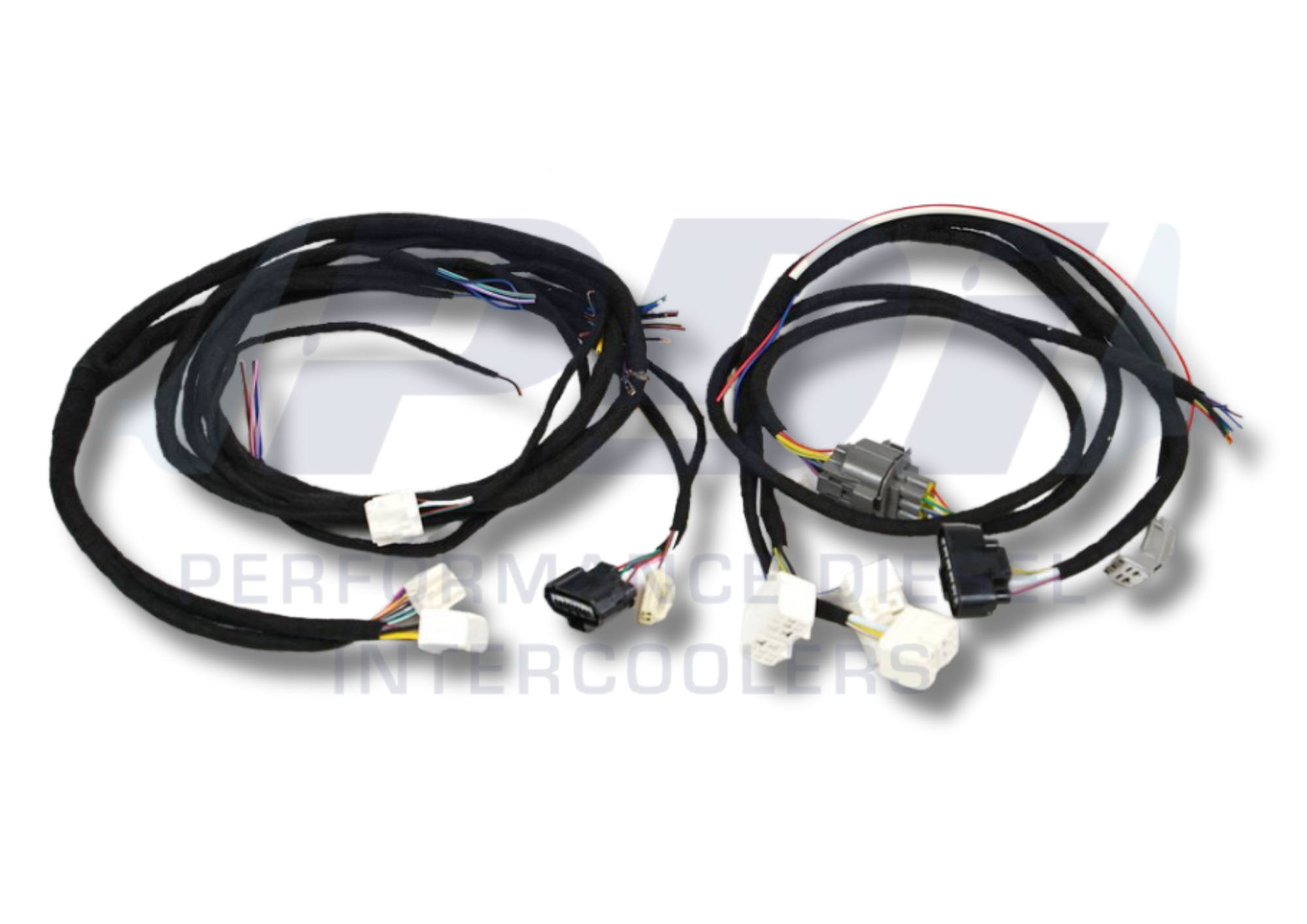

PDI Toyota 1HD-FTE Conversion Wiring Harness for DIY.

Price range: $880.00 through $1,880.00 incl. GST

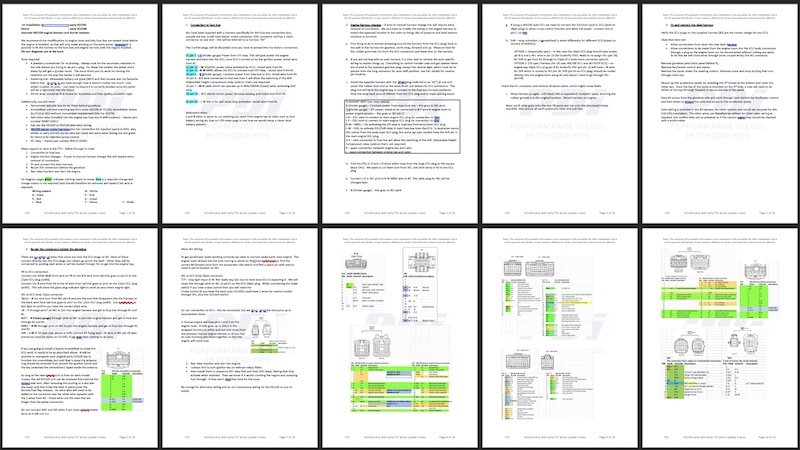

Select the recipient vehicle so we can send the correct instructions
Product total
Options total
Grand total

Allow installation of the FTE each without puling the dash apart and swapping harnesses.  Some like the idea of using complete factory looms, but this method means the dash and everything there remains undisturbed.  Even the instrument cluster can stay in place.

We developed these harnesses for when we used to do our own FTE engine swaps. The way we do it isn’t the only way, but it’s the one that makes most sense to us.

The aim was to reduce the amount of work required. Ideally suited to early manual transmission (or those with standalone auto computer) swaps.

For the early model 105 (pre mid 2002) these come with a harness that connects into the factory fuse box so that fuses and relays in there can be utilised (instead of taking feeds and mounting relays in the glovebox space).

If you have a late (post mid 2002) model HZJ105 and want to connect the relays into the fuse box, this is possible, but (to get the connectors) it is best to find a late model HDJ100 engine bay loom. We have a cut down sample harness for this that can be borrowed (deposit required) to see how to install in the fuse box.

If you are wanting to install in the 80 series, we have instructions and a diagram on how to connect the wiring into the engine bay fuse box using std spade connectors.  The end result is to have ECU and Spill Valve relays in the engine bay fuse box. NOTE: Doesn’t include engine harness, alternator harness or starter wire harness.

Additional Information

In case you are considering the FTE swap then:

  • You cannot mix factory wiring looms between models before and after mid 2002 (facelift) as junction boxes and almost every other connector was changes and some wires became smaller.
  • A HDJ100 instrument cluster wont go into a 105 unless you move the whole dash lot with it.
  • The spill valve relay in an early HDJ100 is behind the passenger side kick panel junction box – to access it, the whole dash and AC plus fan needs to be removed. The PDI harness relocates it into the engine bay fuse box, which is how the factory did it in the late model HDJ100.
  • The HZJ105 front tank has the larger pickups and just need the hoses and clips to go from the top of the tank to the solenoids.  The FZJ105 needs the pumps removed and diesel pickups installed – the level sensor can be used.
  • If you started with the FZJ105, and you have installed the 2 fuel tank solenoid valves, when it comes to making the rear tank work there is one wire that needs to be moved in the connector under the rear drivers door.
  • The 80 series uses the same connectors behind the glovebox to connect to the engine harness, however they changes to pin locations over different models and years. We merge the gearbox section of the 80 lot with the engine portion of the FTE loom to get the easiest result where everything continues to work.
  • the HDJ79 ECU like to have a speed signal in so early 80 series with cable speedo need to be considered upgrading to electronic speedo.
  • the manual 80 series has a H150 or H151 gearbox. Both are strong and don’t need to be upgraded unless chasing bog power and a different H151 or H152 isn’t much strong, but they do have better synchros.
