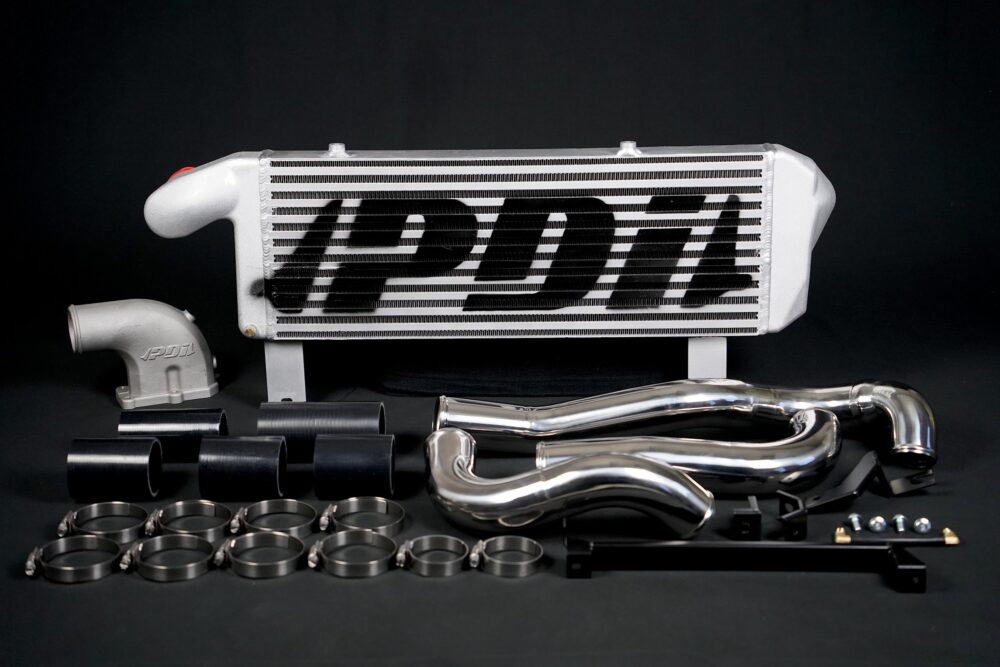

PDI Front Mount Intercooler kit suit Landcruiser HZJ105 105 Series Mk2 1HZ series core

With this core we have designed the end tanks to work around the air conditioning line on the drivers side.

If you would like our large core please ensure you have the HDJ100 AC pipe from compressor to condenser OR order one of our replacement pipes CLICK HERE.

Our intercoolers fit with all bull bar and winch designs as the core is set back to get more draw through from the main engine fan. The fitting of thermo fans may be required for other brands where the intercooler is located too far forward and there is no draw through or ramming of air from the front since the bull bar and other items are in the way.

The moulded end tanks with rear facing outlets have enabled a bigger core, then we pushed it back as far as possible to increase the draw through from the engine cooling fan. With the outlets being rear facing, the stainless steel pipes are connected to the intercooler with straight silicon.

While it is not as effective as our larger core, most 1HZ aren’t pushed too hard and this core will easily cater for almost all turbo 1HZ builds. This core is designed to fit around the condenser pipe.

Air can be felt strongly pulling through the intercooler 50-80mm from the core, while idling on startup. To continue to have the air being pulled through while engine temps are low (and the fan hub normally free wheels) some extra fluid can be added to the viscous coupling.

EGT Gauges

If you plan to install an EGT probe, we recommend doing this into the dump pipe after the turbo. Recently we have decided to stock an EGT probe system that uses a Class A probe with 2m long lead and digital display making it easy to read and mount. We have another option in green that has a smaller thread for mounting into intake air temps if you wish to see how you system is performing. These can be purchased HERE

Brake Booster Upgrade

PDI have the only brake booster upgrade on the market for the base spec 105 series that have the non-ABS systems. The factory booster is a small single diaphragm unit which is insufficient in when towing or when wheel size is increased. The PDI upgrade for the 105 is a dual diaphragm unit with larger than standard diameter giving an increase in the mechanical advantage able to be applied to the master cylinder by 50% and has transformed the vehicle for many 105 series owners. Can can be purchased HERE.

Upgraded Airbox

Typically we suggest this mod is cost-effective if you have a 12mm pump and are running higher flow injectors with more than 160kw at wheels. PDI have their own design airbox that is cast aluminium, uses a 200 series panel filter and has stainless steel latches to hold the lid down. They can be purchased HERE
