PDI Heavy Duty Transmission Cooler Kit suit Isuzu D-Max 2020+ / MUX 2021+ / BT50 2020+ AC60

Product Overview

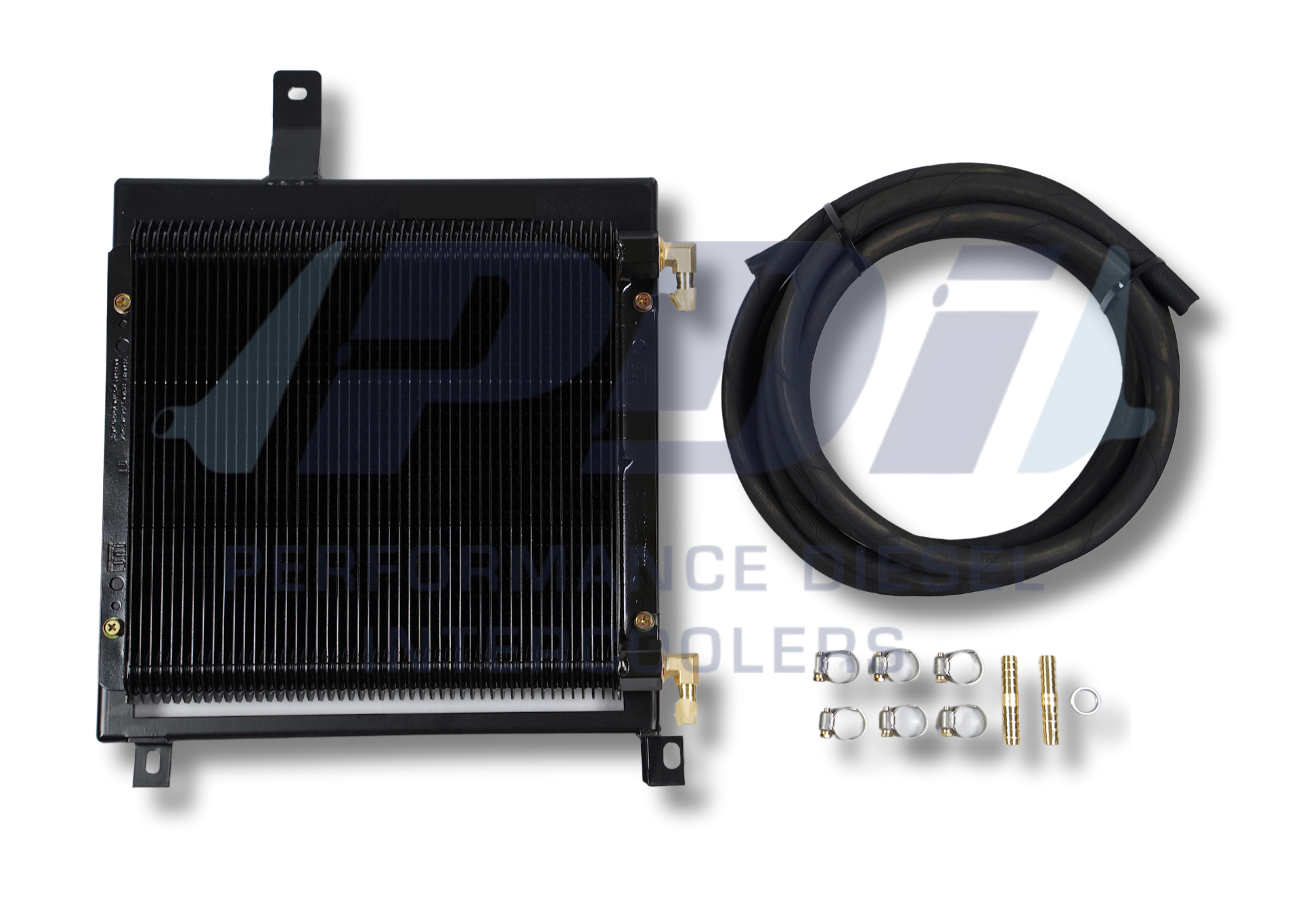

In Stock and Ready to Ship! The PDI Isuzu D-Max 2020+ / MUX 2021+ / BT50 2020+ AC60 PDI Heavy Duty Transmission Cooler is designed to enhance the performance and longevity of your vehicle’s transmission. With 48 plates in a robust 280x280x38mm core, this unit is rated at an impressive 29,000 BTU, surpassing the efficiency and flow capability of both single and dual cooler systems available in the market.

Key Features

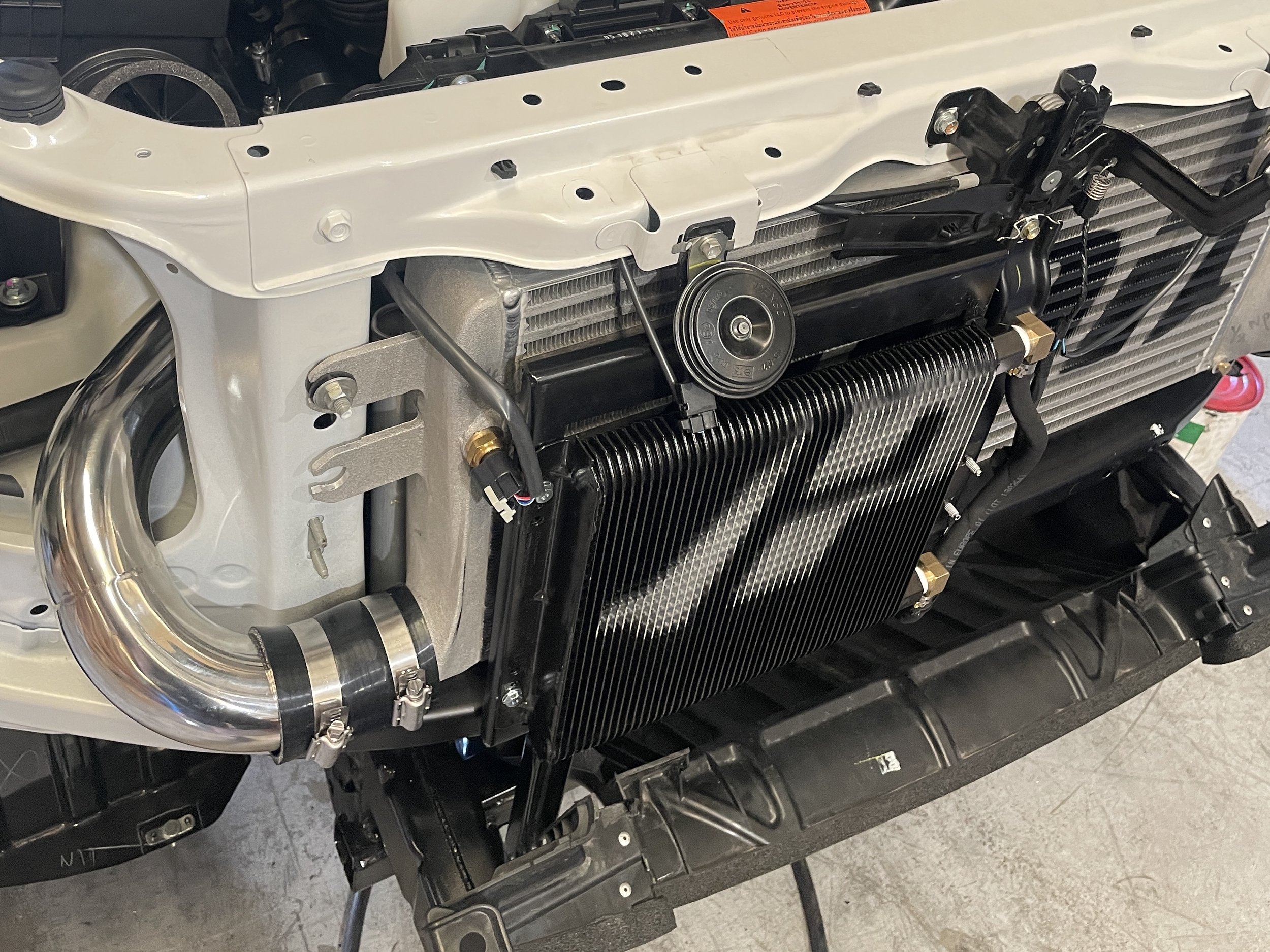

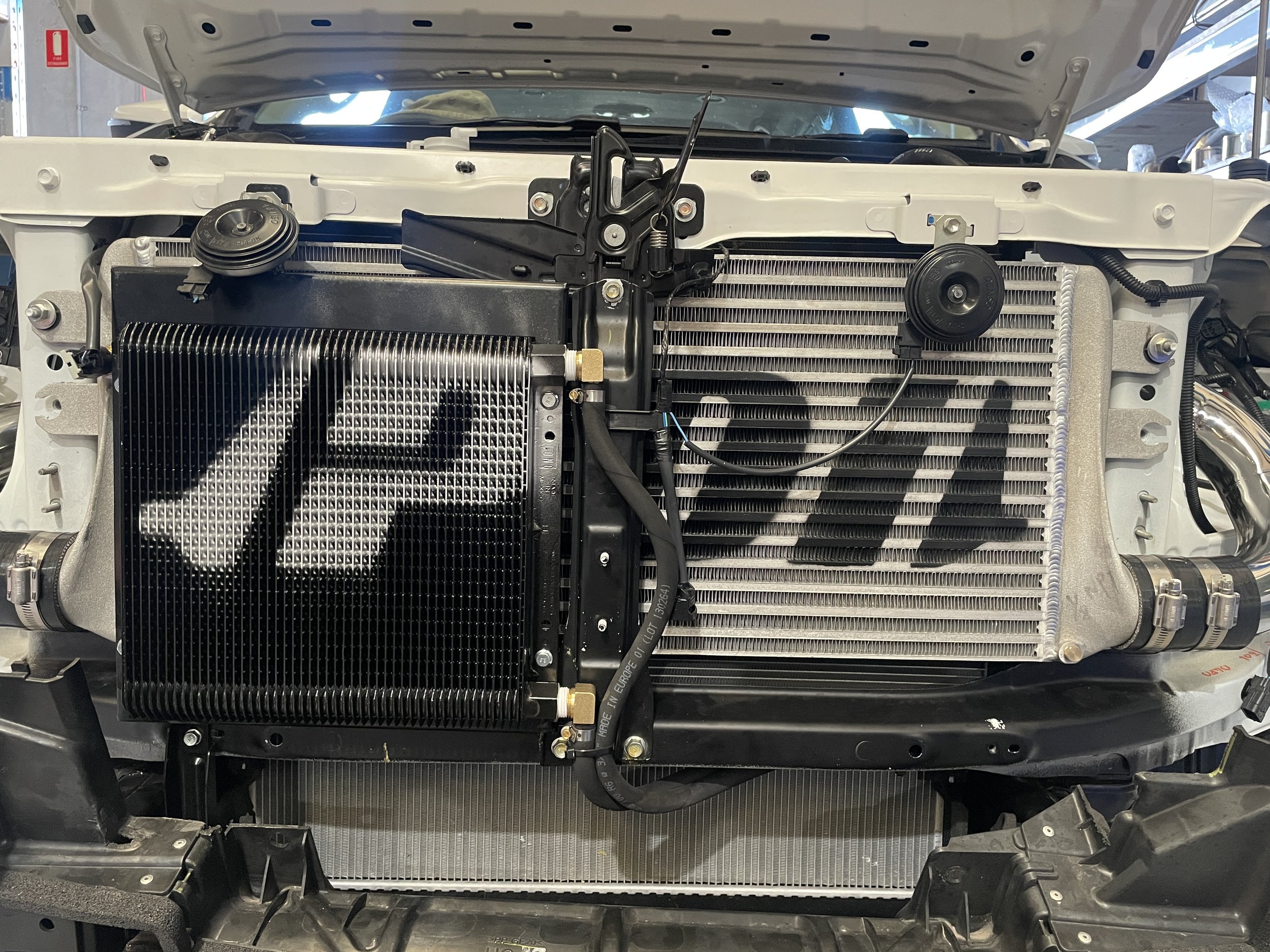

Maximum Efficiency: Our stacked plate cooler design offers superior performance compared to traditional tube and fin or plate and fin setups, improving energy dissipation and reducing flow restriction. Durable Construction: Features steel one-piece brackets that are zinc plated and coated to prevent flexing and corrosion, ensuring a long-lasting installation. High-Quality Hoses: Equipped with high-quality transmission cooler hoses rated for up to 400 psi, providing reliable fluid transport. Optimized Placement: The cooler is strategically mounted in front of the intercooler to avoid heating the intake air, which can reduce torque and increase transmission temperature. Air Lock Prevention: Outlets are located on either side or the top to minimize the risk of air locks inside the cooler, allowing for efficient fluid circulation.

Compatibility

This transmission cooler is designed to work seamlessly with either the factory intercooler or a PDI upgraded front-mounted intercooler. It is specifically suitable for:

• Isuzu D-MAX (Aug 2020+)
• Isuzu MU-X (2021+)
• Mazda BT50 (Aug 2020+) with 6 Speed AC60 Automatic Transmission

Installation Note

For easier installation, the outlets are positioned at the bottom, allowing the pipes to run under the radiator. However, be cautious of potential air locks during initial installation, as this may affect cooler efficiency.

If wanting to buy a transmission cooler together with the intercooler, or learn more about the PDI Front Mounted Intercooler kit for this model CLICK HERE.
